Magenta UK Numbering Database - Numbering Membership
The Magenta UK Numbering Database is designed for those that need to fully integrate telephone numbering, tariff band and locality information into their own systems. The original raw database is available as a set of comma separated variable (CSV) text files that may be importing into custom databases. The database comprises the following tables (approximate number of records bracketed, it changes weekly), samples of which can be provided upon request:
- AllCodes.csv - The main lookup table (442,899)
- AreaCodes.csv - Area names and codes (942)
- Bands.csv - Tariff charge bands, descriptions and codes (1,502)
- Countries.csv - Full international information (813)
- DescCodes.csv - Various look-up descriptions (43)
- Distance.csv - Shows local code pairs (26,236)
- Localites.csv - Locality, post town, post code and area code (5,595)
- Operators.csv - Operator contact info (2,095)
The numbering database is a snapshot of current numbers and tariff bands, usually updated weekly, as new source data from BT and Ofcom is released.
Cost of the Magenta UK Numbering Database is £1,000 plus VAT for the first year (which include full site membership), and £300 plus VAT for subsequent years. Existing site members will be credited with their current fee and so only pay the difference. This price licenses the database to be used in one company or organisation only, and does not allow redistribution with applications. Please contact Magenta Systems Ltd for details on redistribution licensing.
The Magenta UK Numbering Database is distributed in a ZIP file, and may be downloaded from the password protected Numbering section of this web site. It is updated weekly, or less often if there is no new numbering or tariff information from Ofcom or BT.

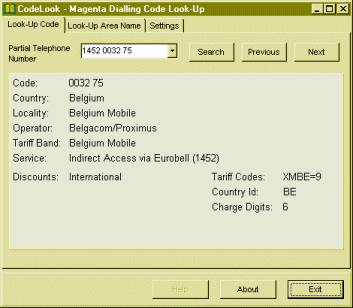

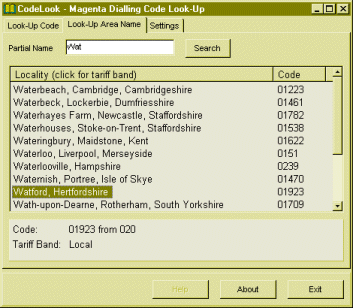

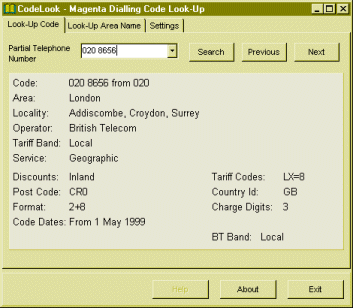

Some of the features of our CodeLook dialling code lookup are available using a Json API, for business and numbering members that prefer to integrate our data into their own systems rather than downloading data files or using a web page.
For Business Trade Members, the Json API is designed for casual use only, similarly to the CodeLook web page, not for sequentially trawling the database, the API tracks usage with 50 requests permitted within 24 hours, before further requests are rejected. Currently, the most popular CodeLook numbering queries are available as Json APIs, but other queries can be added, please just ask. We don't plan to offer any call costing or broadband cabinet lookup APIs.
For API, Numbering and Database members using the dedicated Json API server, the limit is 50,000 requests within 24 hours.
Full details of the CodeLook API for paid members are at: https://www.telecom-tariffs.co.uk/bus/apidoc.htm
Magenta SQL Telecom Database - Database Membership
The Magenta SQL Telecom Database offers a Microsoft SQL Server 2018 database with both numbering and tariff information, exactly the same database that drives this web site. Unlike Numbering Membership, Database Membership includes all our tariff information which may be used to cost telephone calls for billing or competitive purposes using about 500 different tariffs. A single Microsoft SQL Server 2018 database file is supplied that may be quickly restored to other SQL servers, rather than needing to import lots of CSV files.
The database includes various stored procedures to access the 29 tables with about 800,000 rows of numbering, locality and tariff data. For use with other SQL databases, CSV files are also be available. The SQL database is historic, containing old and current numbering and tariff information allowing telephone calls to be costed as at a specified date.
Please note the tariffs in the database are currently taken from the tariff spreadsheet and only include costs to about 40 countries. Systems are currently being developed to automate the import of tariffs from spreadsheets, CSV and XML files, and web pages (similarly to how numbering has been done for 10 years) so costs for all charge bands will finally be available.
Cost of the Magenta SQL Telecom Database is £2,000 plus VAT for the first year (which include full site membership), and £1,000 per year plus VAT subsequently. Existing site members will be credited with their current fee and so only pay the difference. This price licenses the database to be used in one company or organisation only, and does not allow redistribution with applications. Please contact Magenta Systems Ltd for details on redistribution licensing.
The main database is named magtelecom and is built with Microsoft SQL Server 2018. There are five main tables, 12 child tables, one work table and nine small type validation tables.
| Table Name | Expected Rows | Purpose | Description |
| area codes | 5,000 | Child | Area names and codes |
| band costs | 70,000 to 500,000 | Child | All calling costs with tariff, charge band, day type, time band, start time, cost per minute, set-up and tariff name and optional dial through access number, includes historic data |
| call costs | 400,000 to 600,000 | Work | Sample call costs for current tariffs for various call durations, designed for sorted selections, work created from band costs, no historic data |
| call lengths | 7 | Child | Sample call lengths for call costs |
| call types | 4 | Child | Sample call types at different times of the week for call costs |
| charge bands | 1,200 | Main | Tariff bands, descriptions and codes |
| code types | 9 | Types | Main code category |
| countries | 800 | Main | Full international information |
| cps codes | 150 | Child | Ofcom carrier pre selection codes CPS |
| cupid codes | 600 | Child | Ofcom communication provider identity codes CUPID |
| day types | 11 | Types | Days of the week for band costs |
| discounts | 16 | Types | Discount categories used by BT |
| distances | 24,000 | Child | Local code pairs of local call charging based on distance |
| free call periods | 6 | Types | Tariff package free call periods |
| localities | 12,000 | Child | Locality, post town, post code and area code |
| mnc codes | 50 | Child | Ofcom mobile network codes MNC |
| numbers | 320,000 to 500,000 | Main | All dialling codes with tariff band, operator and locality |
| op types | 10 | Types | Operator type, whether information is published |
| operators | 5,000 to 10,000 | Main | Operator contact info |
| rentals | 100 to 500 | Child | Line rental and fixed costs for a tariff, includes historic data |
| reseller codes | 2,500 | Child | Ofcom reseller identity codes RID and addresses |
| services | 30 | Types | Detailed code category |
| statuses | 8 | Types | Ofcom Code number status, whether it's used or not |
| tariff services | 20,000 to 100,000 | Child | Tariff service common costs and charging methods, includes historic data |
| tariff types | 12 | Types | Tariff categorisation types, including residential or business |
| tariffs | 850 to 5,00 | Main | Tariff package names, with monthly cost, operator, rental cost, tariff type and lots of band costs and tariff services in child tables, includes historic data |
| time bands | 4 | Types | Time band categorisation |
In addition to the main SQL tables, other tables will exist in the magtelecom database to assist with program control. These include:
| Table Name | Description |
| defaults | Contains various default values |
| seqnos | Maintains the next available unique id number for a variety of tables. |
The Magenta SQL Gazetteer Database offers a Microsoft SQL Server database with UK locality information, post codes, town names, place names, post code districts and various other gazetteer information. This database is used to prepare and validate the locality information in the Telecom Database, but may have other purposes. Note there are multiple place or town name tables from different sources, with differing county names, some with partial old post codes, not all of which will validate against other, since there is no 'official' formalised list of places in the UK.
Note the Gazetteer Database is approximately 1.5 gigs in size and is updated four times a year, when Ordnance Survey issues new Code-Point Open post codes.
| Table Name | Expected Rows | Purpose | Description |
| Gazetteer of British place names from Association of British Counties, with traditional and administrative counties | |||
| post codes | 1,800,000 | < | Full post codes with map and grid references from Ordnance Survey Code-Point Open |
| town names | 1,600 | Post towns and traditional counties from Association of British Counties | |
| place codes | 27,000 | Old list of places with administrative county and partial post code | |
| post district codes | 3,000 | Contains every outward post code, giving the post town and county, from web | |
| os place names | 260,000 | Gazetteer of British place names from Ordnance Survey, with administrative counties, from 1:50,000 scale gazetteer | |
| os locator | 850,000 | Gazetteer of British road names and localities from Ordnance Survey Locator | |
| os country codes | 6 | Child | Country codes from Office of National Statistics |
| os county codes | 40 | Child | Local government administrative county codes from Ordnance Survey |
| os district codes | 400 | Child | Local government administrative district codes from Ordnance Survey |
| os ward codes | 9000 | Child | Local government administrative ward codes from Ordnance Survey |
| os nhs areas | 50 | Child | NHS area and region codes from Ordnance Survey |
